PET thermoformed blister sheet rolls

PET-SHEET.COM

生産制限:: 厚さの範囲: 0.18mm-1.8mm; 幅の範囲: 350mm-1300mm; 色の範囲: クリア/透明/黒/白/カスタマイズカラー; MOQ: 5 トン (無料サンプル受付); 用途: 熱成形トレイ / 電子トレイ / 生鮮食品トレイ / ブリスター包装

これをお探しですか？ Thermoforming PET Sheet Roll. pet-sheet.com is 製造と輸出に特化した工場、硬質 Thermoforming PET Sheet Roll 熱成形またはブリスター包装用. に関して "PET thermoformed blister sheet rolls", 日语：PETプラスチックの厚さ、幅、および用途などの要件をお知らせいただければ、当社のプロフェッショナルな営業チームが最も競争力のある価格をご提示します。

PROPERTIES	METHOD	UNIT	SPEC
Coefficient of Kinetic Friction	GB/T 10006	---	≦0.350
Specific gravity	ASTM D-792	g/cm3	1.345
Meliting Temperature	ASTM D-3418	℃	250±5
Glass Transition Temperature	ASTM D-3418	℃	65~75
Haze	ASTM D-1003	%	≦3.0
Tensile Elongation@Break	ASTM D-638	%	≧450
Tensile Strength@Yield	ASTM D-638	Kg/cm2	≧550

No related posts found.

Product Introduction of PET thermoformed blister sheet rolls

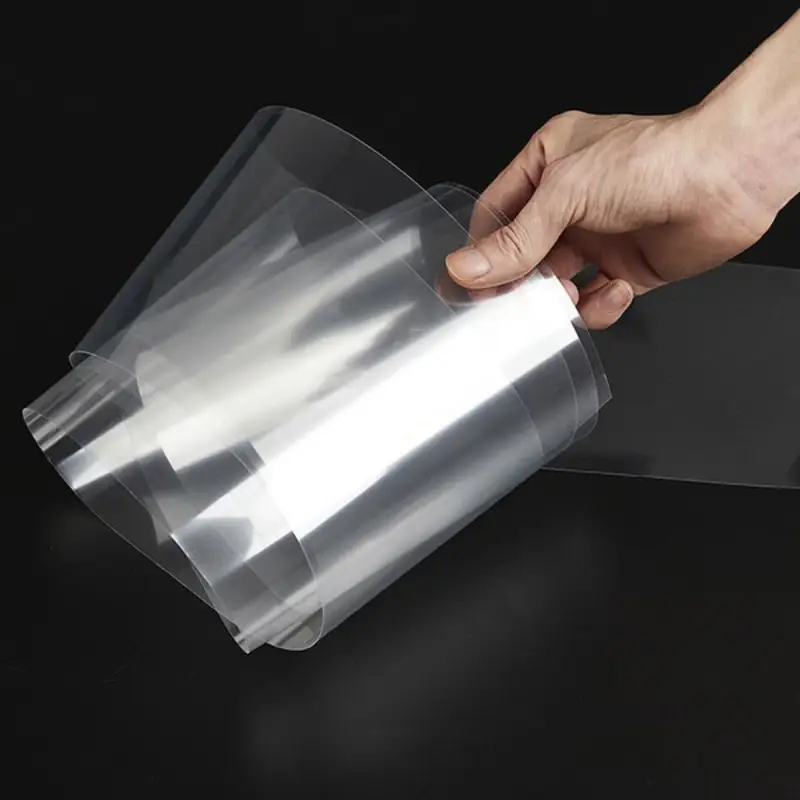

PET thermoformed blister sheet rolls are specialized plastic materials used primarily in thermoforming applications, such as for creating blister packaging for consumer products, electronics, pharmaceuticals, and food. Made from high-quality PET (Polyethylene Terephthalate) plastic, these sheets are durable, transparent, and lightweight, providing excellent protection and visibility for packaged goods.

PET thermoformed blister sheet rolls

Size: Thickness: 0.18-1.8mm

Width: 300-1400mm

Color: Transparent/Others or Customized

Application: Thermoforming vacuum forming blister packaging boxes or trays for electronics, food, medical, and other industries

Special performance customization: Anti-fog, ESD (Anti-static, Conductive, Static dissipative), Corona, Printing, Coating, High impact, Waterproof, Oil-proof, Anti-UV, etc.

Delivery time: 7~15 days since receipt of PO and down payment.

Payment Accepted: D/A, D/P, T/T, L/C, Westunion etc.

MOQ: 5 tons, free samples supply.

Learn More

Contact Us

Specifications of PET thermoformed blister sheet rolls

Product Category	APET, GAG, RPET, PET/PE, etc.
Shape	Roll/Sheet
Thickness	0.18~1.8mm
Width	300~1400mm
Quality	Virgin/Recycled
RPET content percentage	30%-100%
PET Roll Diameter	≤38 inch
Color	Clear, White, Blue, Brown, Pink, Green, Yellow or Customized
Performance	Anti-fog, ESD (Anti-static, Conductive, Static dissipative), Corona, Printing, Coating, High impact, Waterproof, Oil-proof, Anti-UV, etc.
Packing	PE film inside + kraft outside+pallet (paper tube diameter: 76mm, thickness: 10mm)
Processing technology	Thermoforming Vacuum Blister Forming, Die Cutting
Company Profile	5 PET co-extruded production line & 2 PET coating production line. Production Capacity: 2,000MT/month. First-class R&D team, 30+ patents, CE, ISO 900, ROSH, GRS certificate. 40+ agents China, 100% return or original compensation Guarantee.

Properties	UNIT	METHOD	Virgin PET	Pre-consumer/Post Recycled PET
Properties	Data	(ASTM)	100% PET	RPET 25%	RPET 30%
Thickness Tolerance	%/mm	/	±5%	±5%	±5%
Thickness Range	mm	/	0.18 – 1.8	0.18 – 1.8	0.12 – 1.8
Width Tolerance	mm	/	±2mm	±2mm	±2mm
Width Range	mm	/	300 – 1400	300 – 1400	300 – 1400
Weight Tolerance	%	/	±3%	±3%	±3%

Features and advantages of PET thermoformed blister sheet rolls

1. High Clarity and Transparency

PET thermoformed blister sheet rolls offer superior optical clarity, ensuring that the packaged product is clearly visible to consumers.

2. Strong Durability

PET sheets provide robust protection against impact, moisture, and tampering, which is ideal for sensitive items.

3. Lightweight and Cost-Effective

Despite being lightweight, PET plastic sheets are strong enough to hold products securely, helping reduce shipping costs and environmental impact.

4. FDA-Approved

PET sheets used for food packaging often comply with FDA regulations, ensuring they are safe for direct food contact.

5. Customizable

These sheets can be customized in terms of thickness, color, size, and surface treatment, making them versatile for different industries.

6. Thermoforming Compatibility

PET thermoformed blister sheets are highly compatible with thermoforming processes, allowing manufacturers to shape them into precise packaging molds.

Advantages of PET plastic sheet rolls

High transparency and gloss 90%
Excellent impact resistance
Chemical resistance
Excellent flavour barrier properties
Easy thermoforming characteries
Lightweight
Highly recyclable
FDA Approval
Excellent printability
Good temperature resistance

PET thermoformed blister sheet rolls type we offer

PET sheet type	Width (mm)	Thickness (mm)	Color	Resistance value (Ω)
Silicon-coated PET	300-1400	0.18-1.8	Transparent/Others	/
RPET sheet			Transparent/Others	/
GAG sheet			Transparent/Others	/
Anti-fog PET			Transparent/Others	/
High impact PET			Transparent/Others	/
PET lamination PE			Transparent/Others	/
PET sheet for electronic
Conductive PET	300-1400	0.18-1.8	Transparent/Others	10⁴-10⁶
Semi-conductive PET			Transparent/Others	10⁶-10⁹
Anti-stactic PET			Transparent/Others	10⁹-10¹¹
Coated PET			Transparent/Others	10³-10⁶

Application of thermoformed blister sheet rolls

Consumer Goods: Used for packaging toys, cosmetics, and hardware items.
Pharmaceuticals: Ideal for pill and tablet blister packaging.
Food and Beverages: Used for packaging items like meats, cheeses, and snacks, where product visibility is important.
Electronics: Protects electronic devices, such as small parts and accessories, from environmental factors.

Choose us Desu Plastic (Shanghai) Co., Ltd

DESU (pet-sheet.com) is an excellent thermoformed plastic sheet rolls manufacturer in China, mainly developing and producing PET, HIPS, PP and other plastic sheets. The company has 12 PET/PP/PS co-extrusion production lines imported from Europe, 2 PET coating production lines, a completely dust-free production workshop and is equipped with the most advanced raw material air conveying/drying system and PLC intelligent control system. Our annual output exceeds 40,000 tons, and customers from more than 30 countries around the world have chosen us.
